Container Shelters

Overview

Portable Protection. Instant Infrastructure.

Champion Container Shelters provide an efficient, low-cost way to create large-scale storage or workshops by utilizing existing 20ft or 40ft shipping containers. The dome canopy design sheds snow and water effectively, while the galvanized steel frame ensures long-term structural integrity in harsh environments.

Designed for fast assembly with no welding required, these shelters are fully relocatable. Simply unbolt the system, pack it back into the containers, and move to your next project site. Spans ranging from 6 m to 15 m provide ample space between containers for heavy machinery and vehicle movement.

✶

No-Welding Install

Bolt-on or twist-lock mounting systems for rapid site setup.

➡

Fully Relocatable

Ideally suited for temporary construction yards and exploration camps.

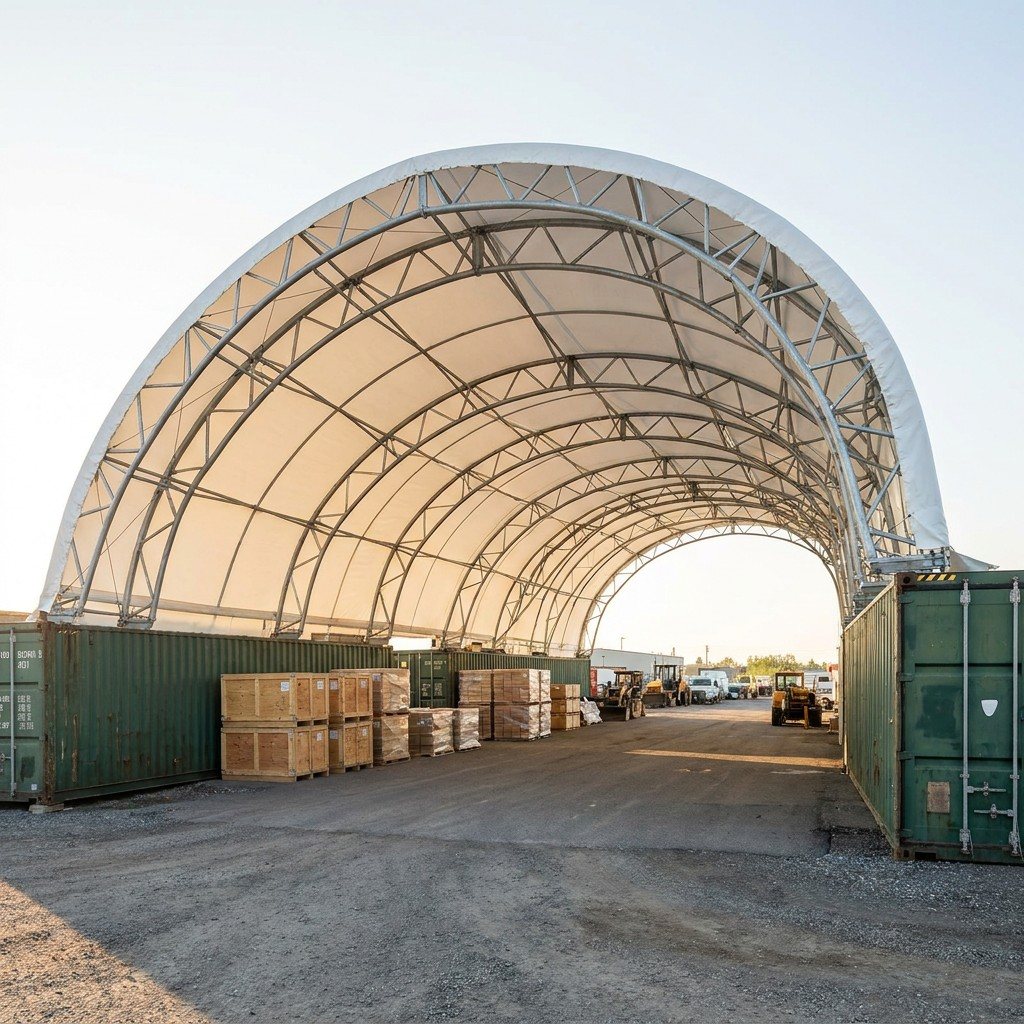

Container shelter dome canopy on shipping containers

Technical Specifications

Built for the Field

Engineered for portability and resilience. Toggle m / ft in the header to switch units.

⬇ Download Spec Sheet (PDF)

Parameter	Specification
Span Between Containers	6 m – 15 m
Building Length	Unlimited (standard 20ft / 40ft or modular extensions)
Peak Height	Up to 6 m above container roof
Frame Type	Galvanized steel hoop trusses (Q235/Q355)
PVC / PVDF Membrane	610 / 750 / 900 / 1100 / 1200 / 1350 / 1450 gsm (18 / 22 / 27 / 32 / 35 / 40 / 43 oz)
Mounting Options	Standard Bolt-on, Weld-on, or Twist-lock plates
Wind Load Rating	Engineered to site, up to 160 km/h
Snow Load Capacity	Site-specific engineering available
Operational Temperature	-30 °C to 70 °C
Service Life	15+ years for frame; 10–30 years for PVC/PVDF cover (up to 1450 gsm PVDF)
Compliance	ISO 9001, AWS certified welding (factory)
Container Compatibility	Standard ISO shipping containers (20ft, 40ft, High Cube)

Materials & Components

High-Grade Portable Engineering

◯

Hoop Truss Frame

Galvanized steel tubing designed for maximum strength-to-weight ratio and simple bolt-together assembly.

▧

Heavy-Duty PVC / PVDF

UV-stabilized, flame-retardant PVC membrane from 610 up to 1450 gsm double-sided PVDF. Double-stitched or hot-air welded seams for 100% waterproofing.

🔧

Mounting System

Industrial-grade clamping or twist-lock systems that secure to container corners without compromising structural integrity.

See full engineering & material science →

Honest Comparison

Advantages & Considerations

vs. ground-mounted or permanent structures.

▲ Advantages

Zero impact on site — no permanent foundation required
Utilizes shipping containers for secure storage and height
Extremely fast setup — typically 1-3 days with a small crew
Low shipping volume — entire shelter packs into a small crate
No specialized welding or heavy tools required for install
Tax-efficient as it is classified as temporary/portable equipment

▼ Considerations

Span limited to 15 m for standard dome designs
Height is fixed by the combination of container and dome peak
Requires containers to be level and appropriately ballasted
Less interior vertical space at the edges compared to I-beam frames

Installation Requirements

Setting Up Your Shelter

🚚

Site Preparation

Level ground for container placement. Containers must be parallel and spaced to match the truss span.

🚧

Access & Equipment

Scissor lift or scaffold and basic hand tools. No crane required for smaller spans.

👨

Crew Requirements

3-4 people can complete an average 40ft shelter in 1-2 days.

⏳

Lead Time

Standard sizes in stock; custom configurations 3-5 weeks from order.

🔨

Assembly Process

Base plates mount to containers, trusses are assembled and lifted, then fabric is pulled and tensioned.

📦

Container Ballast

Containers must be loaded or anchored to ground to resist wind uplift forces on the canopy.

Applications

Where Container Shelters Excel

Mining & Energy

Remote workshop and equipment maintenance bays.

Construction Yards

Protected storage for materials and site vehicles.

Military & Aid

Rapid deployment hangars and command centers.

FAQ

Common Questions

Yes, our mounting systems are compatible with single or double-stacked containers to provide additional sidewall height for large equipment.

The dome profile naturally sheds wind. Our shelters are engineered for wind speeds up to 160 km/h, provided the containers are properly anchored.

Our premium PVC membranes meet international fire retardancy standards including B1 and M2 classifications.

Minor tears can be easily repaired on-site using a PVC repair kit (heat welder and patches). For major damage, replacement covers are readily available.

In many jurisdictions, container shelters are classified as temporary or non-permanent structures, which may simplify the permitting process. Always check local regulations.

Field-Tested Engineering

Robust Dome Canopy Architecture

Champion's container shelters are not mere tarps over boxes. They are precision-engineered canopy systems designed to turn shipping containers into high-performance industrial assets. Our dome geometry is specifically optimized for wind-load shedding and natural structural stability, allowing for clear spans that remain stable in the world's most exposed job sites.

By utilizing the structural integrity of the containers themselves, we create a rigid foundation for a galvanized steel hoop frame that can withstand significant environmental pressures without permanent ground impact.

◯

Precision Hoop Truss Geometry

The curved profile of our galvanized steel trusses is designed to distribute wind and snow loads evenly into the container side-rails, preventing localized stress concentrations and ensuring long-term frame integrity.

🔧

Zero-Drill Mounting Systems

We utilize industrial-grade C-clamps and twist-lock base plates that secure directly to the container's ISO corner castings. This allows for a structural connection without drilling or welding, preserving the resale value of your containers.

▧

Mechanical Over-Center Tensioning

The PVC membrane is secured using a heavy-duty strap and winch system. This allows for precise, repeatable tensioning that keeps the fabric drum-tight, eliminating wind flap and water pooling.

🚚

Modular Bay Extension

The shelter system is inherently modular. You can link multiple 20ft or 40ft canopy sections together to create an infinitely long covered workspace that adapts to your growing site requirements.

Customization

Portable Shelter Configurations

Tailor your container-mounted facility with a range of professional accessories designed for field efficiency and equipment protection.

▣

Full & Partial End Walls

Enclose one or both ends of your shelter with fabric end-walls. Options include personnel doors, equipment zippered doors, or fixed panels for maximum weather protection.

🚚

Internal Gantry Mounts

For remote workshops, we can integrate light-duty gantry or hoist mounts into the truss system to facilitate engine pulls or heavy equipment maintenance.

🌬

Advanced Ventilation

Mesh gable vents and passive roof turbines are available to facilitate airflow and prevent heat build-up, especially in high-temperature mining environments.

🔨

Specialized Mounting Hardware

Choose from standard weld-on rails for permanent setups, or our "Fast-Track" twist-lock system for rapid deployment and strike-down on temporary exploration sites.

☀

Reflective PVDF Coatings

Our premium covers — up to 1450 gsm (43 oz) — can be supplied with a self-cleaning double-sided PVDF top-coat that reflects UV radiation and keeps the interior significantly cooler.

🚧

Integrated Safety Systems

We provide mounting kits for industrial LED lighting, fire extinguishers, and emergency signage that integrate directly into the canopy trusses.

Efficiency Analysis

Shelter Canopy vs. Open-Air Container Storage

Adding a Champion canopy to your existing shipping containers transforms static storage boxes into a dynamic, multi-purpose industrial workspace.

Performance Criteria	Champion Container Shelter	Open-Air Container Storage
Workspace Utility	100% weather-protected for active work	Limited by rain, wind, and solar heat
Internal Temperature	UV-reflective fabric lowers heat by ~15°C	Steel containers become "ovens" in sun
Effective Storage Volume	Utilizes the large span between boxes	Limited strictly to the internal box dimensions
Deployment Speed	Typically 1–3 days on site	N/A (Static)
Mobilization Cost	Packs into a single crate for transport	Requires massive logistics for extra containers
Tax & Permit Status	Classified as temporary site equipment	Often requires permanent real-estate status
Lighting	Translucent fabric provides natural light	Requires high-energy artificial lighting
Equipment Safety	Protects heavy machinery from rust/UV	Rapid degradation of paint and electronics

Site Engineering

Built for Extreme Environmental Loads

Shipping containers provide a massive, heavy base, but the canopy acts as a large airfoil. We engineer the trusses and the connection points to withstand site-specific wind speeds of up to 160 km/h.

For cyclone or hurricane-prone regions, we utilize reinforced steel gauges and heavy-duty PVDF fabric up to 1450 gsm (43 oz). Crucially, our engineering reports specify the required container ballast weight to prevent uplift during extreme weather events.

This data-driven approach ensures that your shelter remains a safe, productive asset even in the most hostile environments on earth.

Wind Engineering Data → Snow Load Analysis →
